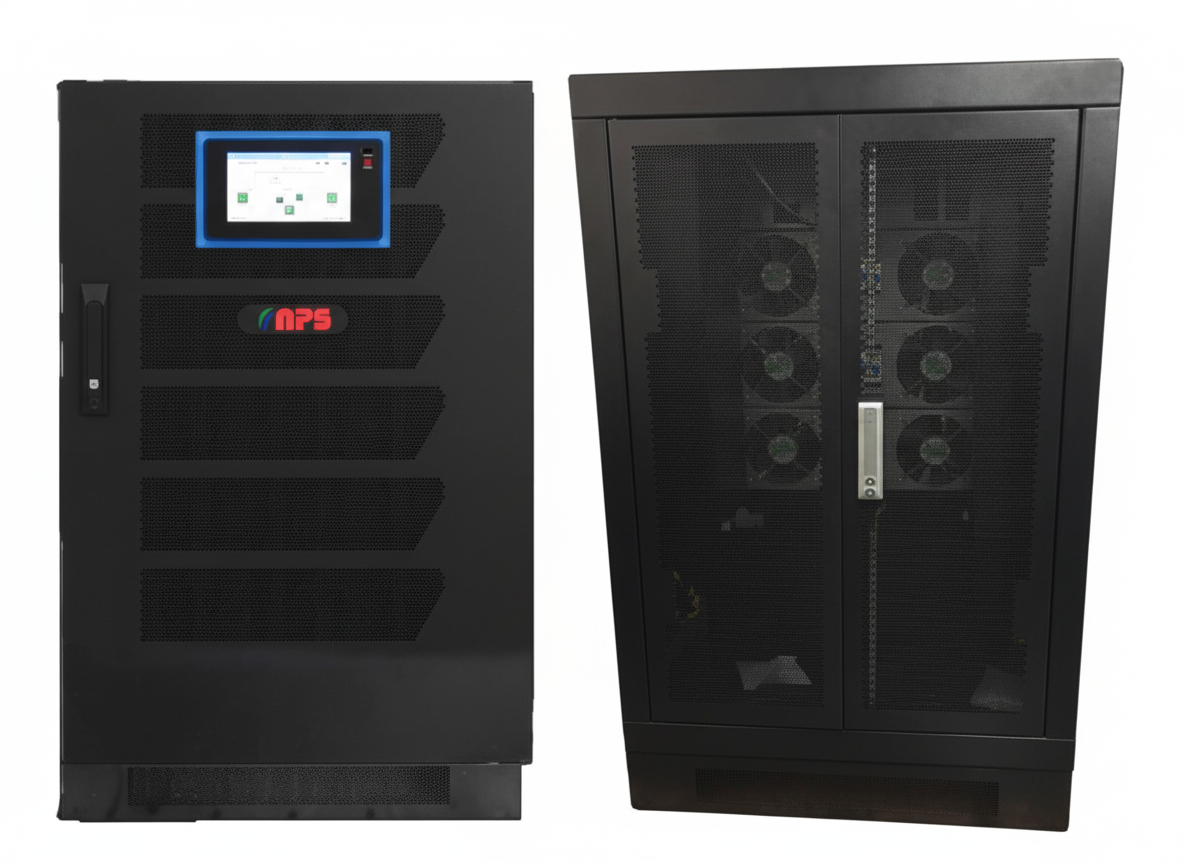

PS 15 Series

This is a high-performance, true online double conversion UPS system using 3-Level IGBT technology for clean, reliable power with an output power factor of 1.0 (kVA=kW). It features a hot-swappable, modular design for easy maintenance and offers flexibility with configurable 1-Phase & 3-Phase input/output and generator compatibility. It operates efficiently with low input harmonics and a high input power factor across a wide voltage range.

Download PDF Contact me

Features:

Advance Fully Microprocessor DSP Based True Online double conversion
3-Level IGBT Based Rectifier & Inverter Technology
Wide input voltage range
Wide input frequency range: 40-70Hz
Input current Harmonics: <3%
High input power factor: ≥0.99
Rack Optimization battery group: 16/18/20 Nos.
High output power factor: 1.0 (kVA=kW)
1-Phase & 3-Phase Input Configuration (Rack & Module Dependant)
Emergency power off function (EPO)
Generator compatible
Cold start function
Intelligent fan adjustment to extend fan life
Each module with individual LC display
Hot-Swappable Power Modules for Easy Maintenance
Built-in Active Power Factor Correction
Configurable 3-Phase & 1-Phase Input

Flexible Configuration :

Various type of alarms :-

Overview:

Technical Specifications

RACK MODEL	PS15R3MU			PS15R5MU
RACK MODEL	Maximum Number of Modules	3			5
Maximum Capacity	Capacity = No. of Modules x kVA of Module, Maximum Capacity = 50kVA
Dimension (WxDxH) in mm	600 x 840 x 1000			600 x 840 x 1400
Weight of Rack (kg)	142			156
POWER MODULE MODEL	PS1104L16	PS1106L16	PS1108L16	PS1110L16	PS3112L20	PS3115L20	PS3116L16
Module Capacity (kVA)	4	6	8	10	12	15	16
INPUT
Nominal Voltage	For 1 Phase: 220V / 230V / 240V AC (1Ph+N+PE) & For 3 Phase: 380V / 400V / 415V AC (3Ph+N+PE)
Voltage Range	120V~280V AC Load Dependent (Phase - Neutral)
Frequency Range	40-70Hz
Power Factor	≥ 0.99
THDi	< 3%
Bypass Voltage Range	Max. Voltage : 25% for 220/380V, 20% for 230/400V & 15% for 240/415V Min. Voltage : -45% (Optional -10%, -20% & -30%)
OUTPUT
Output Voltage, Regulation	220V / 230V / 240V AC (L+N) ± 1%
Power Factor	1.0
Frequency Range	Auto Sensing 50 / 60 Hz ± 1-10% Mains Synchronized (Configurable), 50 / 60 Hz ±0.1Hz Battery Mode
Crest Factor	3:1 (max.)
Harmonic Distortion	≤ 2 %
Transfer Time	Zero
Waveform	Pure Sinewave
Overload	≤ 110% for 60 min, ≤125% for 10 min, 150% for 200 ms
Efficiency	96.5% Dual Conversion Mode, 99% ECO Mode
Waveform	Pure Sine Wave
BATTERY CHARGER
Battery Quantity	16-20 Nos.
Charging Current (Module)	16A
Rack with UPS
IP Protection	IP 20
Alarm / Protection	Short Circuit, Input Under/Over Voltage, Over Temperature, Over Current, Over Load, DC Bus Under/Over Voltage and Battery Low
LED / LCD	UPS status, Load % / VA / W, Battery level, Input/Output voltage, Discharge timer, and Fault Code
Display	7 inch LCD Display on rack
STANDARDS
Quality	ISO 9001, ISO 14001, ISO 27001, ISO 45001, ISO 50001, RoHS
Safety	IEC/EN62040-1
EMC/ Performance	IEC/EN62040-2; IEC/EN62040-3, Complying to CE
PHYSICAL
Dimension W x D x H (mm) Net Weight (kg)	UPS Module	443 x 580 x 131 (3U)
Dimension W x D x H (mm) Net Weight (kg)	UPS Module	29
ENVIRONMENT
Temperature	Operating: 0 ~ 50°C*, Storage: -15 ~ 60°C
Humidity / Altitude	0-95% RH Non-condensing / <1500 m
Noise	< 60dBA
COMMUNICATION
Standard	RS-232, Battery Temp. Comm., RS-485, Parallel Intelligent slot x 2, Dry Contact
Optional	SNMP / ModBus / USB
Monitoring Software	NetAgent Utility v5.8 / View Power / UPSilon 2000 / Muser 4000
