PS 32 Series

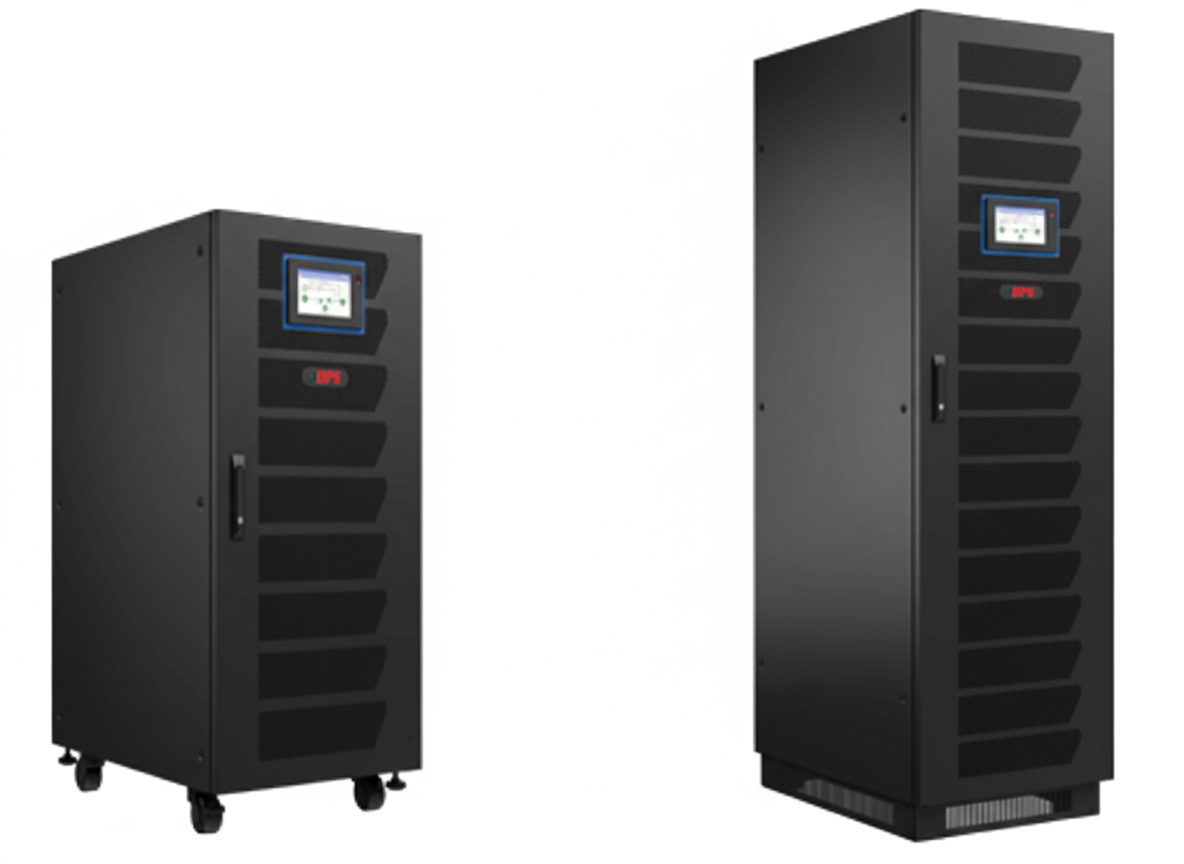

The PS32 series modular, online UPS ranging from 16kVA to 320kVA is designed to protect any critical load for medium and large data center achieving maximum availability. The PS32 series feature the latest technology of 3-level technology, PFC input control & Input Phase Sequence Correction, which guarantees ultra high efficiency of 96.8% and reliability.

Download PDF Contact me

Features:

Compact Design
320kVA in one cabinet, footprint less than m², saving valuable space
High Power Density
16/20/25/30/32KVA power module in 2U height, easy for capacity expansion with full capacity
Ultra Efficiency
Advanced 3-level technology guarantees high efficiency operating in double conversion mode 96.8%
Intelligent Charging Management
The system intelligently controls the whole process of the charging and discharging, effectively improves the life time of the battery
IGBT based Rectifier and Inverter
High Scalability
The system can be configured from 16kVA to 320kVA in one single cabinet, 6 units in parallel for a capacity extension up to 1920kVA
Friendly HMI
7 inch touch screen with graphic display
Smart Sleep Function Load Management
System can intelligently shutdown some power modules in case of less load, save electrical energy.
Multi Communication Interface
Provide RS232, RS485, USB, SNMP, AS400 and programmable dry contacts
Lithium battery compatible

Flexible Configuration :

Various type of alarms :-

Overview:

Technical Specifications

SPECIFICATION OF RACK
MODEL	PS32R5MU25			PS32R10MU42
Rating (kVA) Configurable	160			320
Dimension WxDxH (mm)	600 x 850 x 1200			600 x 850 x 2000
Weight (Kg)	98			185
Bypass	Feature	Hot-Swappable Inbuilt Static Bypass Module for Max. Inbuilt Maintenance Bypass Switch
	Voltage	Max. Voltage: ± 15% (Optional ± 5%, ± 10%, ± 25%)
	Frequency	50 / 60 Hz Auto Sensing ± 1Hz, ± 3Hz, ± 5Hz
	Overload	135% Overload for long temp, >1000% Overload for 100 ms
Monitoring	7 Inch. Touch Screen Display + Keyboard
Nos. of Module	32kVA x 05			32kVA x 10
SPECIFICATION OF MODULE
MODEL	PSM3316L32U2	PSM3320L32U2	PSM3325L32U2	PSM3330L32U2	PSM3332L32U2
Module Rating	16kVA	20kVA	25kVA	30kVA	32kVA
Dimension WxDxH (mm)	440 × 620 × 86 (2U)
Weight (Kg)	21
INPUT
Nominal Voltage	380V / 400V / 415V AC (3Ph+N+PE)
Operating Voltage Range	228V - 480V AC Load Dependent
Operating Frequency Range	40Hz - 70Hz Auto Sensing
Power Factor	≥ 0.99
Harmonic Distortion (THDi)	≤ 3%
Generator Input / Walking	Support / 0-40 Sec. (Configurable)
OUTPUT
Output Voltage	380V / 400V / 415V AC (3Ph+N+PE)
Voltage Regulation	± 1%
Power Factor	1.0 (Unity)
Frequency	Auto Sensing 50 / 60 Hz ± 3Hz Sync Mode (Configurable), 50 / 60 Hz ± 0.1 Hz Battery Mode
Crest Factor	3:1
Harmonic Distortion (THDv)	≤ 1%
Over Load	≤ 125% for 10 min, ≤ 150% for 1 min, > 150% for 200 ms
Efficiency	96.8% Dual Conversion Mode, 99% ECO Mode
BATTERY
Battery Voltage	± 240V DC Nominal (30 ∼ 50 Nos. Configurable)
SYSTEM FEATURE
Self-Diagnostics	During Power ON and Software Control
EPO	UPS Shut down
Transfer Time	Zero
Alarm / Protections	Short Circuit, Input Under/Over Voltage, Over Temperature, Over Current, Over Load, DC BUS Under/Over Voltage and Battery low
Display	Touch Screen LCD & LED Indication
ENVIRONMENTAL
Temperature	Operating: 0 ∼ 50°C*; Storage: -15 ∼ 55°C
Humidity / Altitude	0-95% RH Non-condensing / <1500 M
Noise	<55dBA
STANDARDS
Quality	ISO 9001, ISO 14001, ISO 27001, ISO 50001, RoHS
Safety	OHSAS 18001, IEC/EN62040-1
EMC / Performance	Complying to CE, IEC/EN62040-2; IEC/EN62040-3
COMMUNICATION INTERFACE
Standard	Rack: RS-232, RS-485, Dry Contact
Optional	BMS/ RS485/ LBS / SNMP / ModBus / Dry Contact / Parallel, Dry contact, Relay Card, Battery temperature sensor
Monitoring Software	NetAgent Utility v5.8 / Muser 4000 / Power Manager
