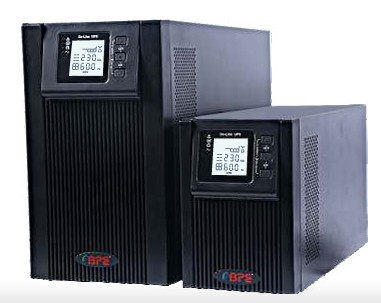

MF Series 1-3kVA

Features:

True Online, Double Conversion & PWM Technology.
Fully Digitized Microprocessor Control, High Frequency & Pure Sine Wave Output.
LCD Display and Wide Input Voltage Range
High Input Power Factor >0.99
Static Bypass and manual bypass
IGBT Based - Inverter & Rectifier

Download PDF Contact me

Features:

True Online, Double Conversion & PWM Technology.
Fully Digitized Microprocessor Control, High Frequency & Pure Sine Wave Output.
LCD Display and Wide Input Voltage Range
High Input Power Factor >0.99
Static Bypass and manual bypass
IGBT Based - Inverter & Rectifier
Isolation Transformer Compatible
Advanced Battery Management
Automatic Battery Charge in UPS Off Mode
EMI/RFI and Noise Filter
Generator and Solar Compatible
High Reliability Digital Control
Auto-start Function & cold start feature
ECO Mode & CMS Software integration option

Flexible Configuration :

Various type of alarms :-

Overview:

Technical Specifications

MODEL	MF1101B3	MF1102B8	MF1103B8
Capacity (VA)	1000	2000	3000
INPUT
Nominal Voltage	220V/230V/240V AC (1Ph+N+PE, 3 Wire)
Operating Voltage Range	100V~300V AC Load Dependent
Operating Frequency Range	50 / 60 Hz ± 10% (Auto Sensing)
Power Factor	>0.99
OUTPUT
Output Voltage/Power Factor	220V / 230V / 240V AC / ±1% / 0.8 Std., 0.9 Optional
Output Frequency	Auto Sensing 50 / 60 Hz ± 1~10% Sync Mode (Configurable), 50/60 Hz ± 0.1 Hz Battery Mode
Harmonic Distortion (THDv)	≤1%
Crest Factor	3:1
Efficiency	94.0% Dual Conversion Mode, 99.0% ECO Mode
BATTERY
DC Voltage	36V	96V	96V
Battery Type & Number	12V/7AH x 03	12V/7AH x 08	12V/7AH x 08
Backup Time (50% Load)	12 Min.	19 Min.	16 Min.
Backup Time (Full Load)	05 Min.	08 Min.	05 Min.
Charge Current	1 A	1 A	1 A
Typical Recharge Time	4-5 Hours (90% of full capacity)
SYSTEM FEATURES
LCD Indication	Input Voltage/Frequency, Output Voltage/Frequency, Battery Voltage, Load Watt/VA and %, Inverter Temperature, Operation Mode such as “On Line”, “ON Batt” or On “Bypass”, Fault Codes, Battery & Load Bar graph
LED Indication	Normal Operation, Bypass, Abnormal, Fault and Battery Mode
Alarms / Protection	Batt. Low, DC High, Inverter Under/Over Voltage, UPS Over Load, Short Circuit, Fan Failure and UPS Fault.
Overload Capability	≤ 125% for 10 min, >125-150% for 1 min, >150% for 200 ms
Transfer Time	AC to Battery : 0ms, Inverter to Bypass : 4ms (Typical)
ENVIRONMENTAL
Temperature	Operating: 0~50°C*, Storage: -15ºC ~ 60ºC
Humidity / Altitude	0~95% RH Non-condersing / <1500m No derating
Noise	≤45dBA
PHYSICAL
Dimension WxDxH (mm)	144x400x215	192x469x399
Weight (Kg)	11.2	26.7	26.7
STANDARDS
Quality	ISO 9001, ISO 14001, ISO 27001, ISO 45001, ISO 50001, BIS, RoHS
Safety	IEC/EN62040-1
EMC / Performance	IEC/EN62040-2; IEC/EN62040-3, Complying to CE
COMMUNICATION INTERFACE
Standard	RS-232
Optional	SNMP / ModBus / Dry Contact / USB / RS-485
Monitoring Software	NetAgent Utility v5.8 / View Power / UPSilon 2000 / Muser 4000
