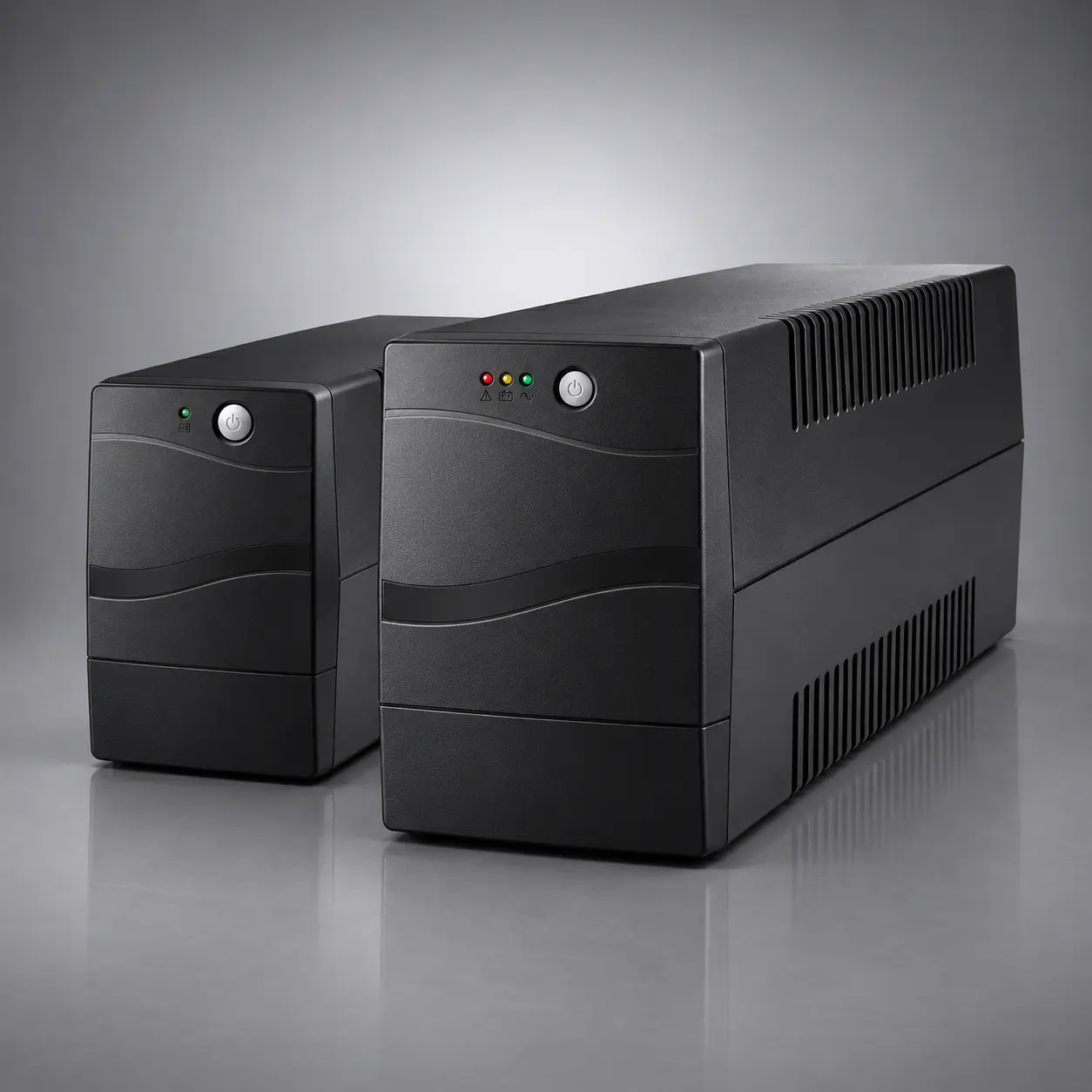

BPI Series 650-1200VA

Line Interactive UPS, BPI650 to BPI2200 (650VA ~ 2200VA), with automatic voltage regulation.

Submit Your Enquiry & Our Experts Will Assist You

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

MODEL	BPI650	BPI1000	BPI1200	BPI1500	BPI2200
CAPACITY	650VA / 390W	1000VA / 600W	1200VA / 700W	1500VA / 900W	2200VA / 1200W
INPUT
Voltage	220V/230V/240V AC
Voltage Range	120V AC ~ 290V AC
Frequency Range	60/50 Hz (Auto Sensing)
OUTPUT
Voltage	220V/230V/240V AC
AC Voltage Regulation	±10% (Battery Mode)
Frequency Range	60 Hz or 50 Hz ± 1 Hz (Battery Mode)
Transfer Time	Typical 2-6 ms
Waveform (Batt. Mode)	Simulated Sine-wave
BATTERY
Battery Type & Number	12V/7AH x 1	12V/7AH x 2	12V/9AH x 2	12V/9AH x 2	12V/9AH x 2
Typical Recharge Time	4-6 Hours recover to 90%
INDICATOR
AC Mode	Green Lighting	Green lighting	Green lighting	Green lighting	Green lighting
Battery Mode	Green Flashing	Yellow flashing	Yellow flashing	Yellow flashing	Yellow flashing
Fault	N/A	Red lighting	Red lighting	Red lighting	Red lighting
ALARM
Battery Mode	Sounding every 10 Sec
Low Battery	Sounding every Sec
Overload	Sounding every 0.5 Sec
Fault	Continuously Sounding
PROTECTION
Full Protection	Overload, Discharge and Overcharge Protection
Physical Size - UPS Module
Dimensions (DxWxH) (mm)	279x101x142	320x130x182	320x130x182	320x130x182	320x130x182
Weight (Kg.)	4.2	8.2	9.2	10.4	11
Environmental
Humidity	0 ~ 90% RH @ 0 ~ 40°C (Non-condensing)
Noise Level	Less than 40dB
Certifications
CE	Yes
RoHS	Yes
