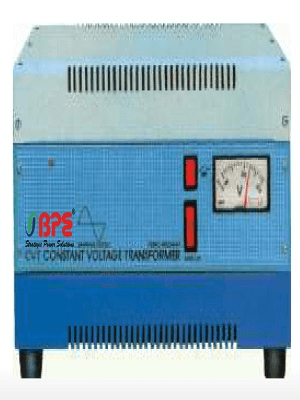

BPE-CVT Series 1000VA-10000VA

BPE-CVT Series 1000VA-10000VA

The BPE CVT, the AC mains powers the input winding which is widely separated physically from the isolated output winding. The input winding normally runs at very moderate Flux linkage levels. The output winding exhibits an intrinsic energy storage characteristic and this energy storage operates in conjunction with mains capacitor to produce self generated AC Flux field which is indirectly excited from the input winding.

Download PDF
Contact us

Submit Your Enquiry & Our Experts Will Assist You

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
Technical Specifications
Features:
  • No semiconductors or moving parts used, hence very high reliability
  • No feedback control used
  • Intrinsic current limiting and short circuit protection
  • Output voltage correction within ½ Cycle (10 ms) from no load to full load for specified load and line variation
  • Short term over load capability
  • Energy storage for line loss up to 3 ms at typical loads
  • Higher input voltage control range, for loads less than rated load
  • Very high line transient/spike rejection capability and excellent input to output isolation characteristics
  • Output floating (optional)

‍

MODEL BPE-CVT1000 BPE-CVT2000 BPE-CVT3000 BPE-CVT5000 BPE-CVT8000 BPE-CVT10000
Input Voltage 180~260V AC (Others Range on Customer Demands)
Input Frequency 50Hz
Output Voltage 220/230V AC ±1%
Effect of Frequency ±1.6% for in output voltage for every 1% change in line Frequency
Output Step-load Response 2 Cycles (30~40 ms)
Efficiency ≥ 90% at full load
Output Waveform Pure Sine-Wave
Waveform Distortion ≥ 5% on full load
Load Power factor 0.75% Lagging to 0.9% Leading
Ambient Temperature -5~50°C
Transformer Type Ferro Resonant
